10.4" industrial panel PC WIN7 Capacitive touch screen J1900 Quad
core tablet kiosk computer
Features
01.Support embedded,wall-mounted,rack-mounted,desktop,cantilever
support.
02.Black or silver color optional
03.IP65 grade water-proof,dust-proof for front panel.
04.Working temperature:-10-60°
05.365Days*24hours all-weather working.
06.Starting up once power on.
07.Aluminum alloy shell,good mechanical properties,better
performance of heat dissipation.
08.Adopt industrial control HD LCD screen +LED backlight
screen,highlight picture,perfect color.
09.Compatible with various industrial systems/application.
10.Support without touch,resistive touch,capacitive touch,IR touch.
11.Equipped with WI-FI module,more convennient.
12.Build-in 2.0 speakers,support 1080P HD video.
13.Complete machine triple protection:explosion-proof, flameproof,
moisture-proof.
14.Shock resistance standard reach GB2423,protection during
transportation/working on the sea.
15.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV(
customized MAX 16KV).
16.Anti surge design,it is proper functioning during Instantaneous
voltage rising into 280v.
Specifications
General
info | Item No. | IPPC104-T011201 |
| Material | Aluminum Alloy |
| Color | Black / Silver |
| IP rating | IP65, indoor & outdoor complied |
| Operation System | WIN 7/8/10/XP LINUX |
| Weight | 1.8 KG |
| Delivery time | 1-15 days depend on order quantity |
| Certificate | CE ROHS |
| Warranty1 | years |
| Avalability of customization | YES |
Mainboard
info | CPU | Intel Celeron J1900 2GHz Quad-cores |
| Hard disk | 64G SSD |
| Memory | 2G DDR3 |
| Audio | Integrated audio chip |
| Network | Integrated gigabit network card |
| WIFI | Inner |
| Graphics | Integrated |
| System | WIN 7/8/10/XP LINUX |
| Speaker | Inner |
Screen
info | Screen size | 10.4 inches |
| Resolution | 1024*768 |
| Proportion | 4:3 |
| Gray-scale response time | 5ms |
| Panel Type Industrial | Control A style TFT |
| Point distance | 0.264mm |
| Contrast | 1000:1 |
| Backlight type | LED, lifespan≥50000h |
| Display color | 16.7M |
| Visual angle | 160 deg / 160 deg |
| Brightness | 400cd/m2 |
| Touch type | Default Capacitive
(resistive and infrared optional) |
| Touches cycles | ≥ 50 million times |

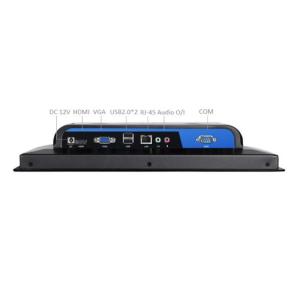

Interface
info | USB | USB2.0*2 |
| Expansion | COM*1 |
| Default protocol | RS232 |
| WIFI | WIFI * 1 |
| Power Supply | DC12V *1 |
| HDMI | HDMI * 1 |
| VGA | VGA * 1 |
| Network card | RJ-45*1 |
| Audio | Input *1 + output *1 |
Other
info | Power Supply | 12V 5A External |
| Tablet Input voltage | 12V |
| Anti-static | contact 4KV, air 8KV |
| Monitor Power | ≤60W |
| Anti-vibration | GB2423 standard in China |
| Anti-interference | EMC & EMI anti-electromagnetic interference |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof |
| Installation method | Default Embedded
(desktop, wall-mounted, cantilever optional) |
| Ambient humidity | 5~85%, non-condensable |
| Working temperature | -20°C~70°C |
| Language menu | Chinese, English, German, French, Korean,
Spanish, Italian, Russian,custumed |
