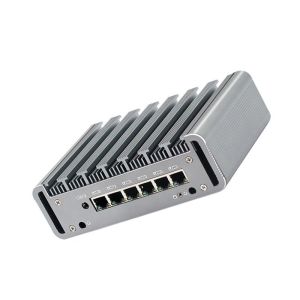

Intel® 7th gen i3 i5 i7 6 NIC network security firewall appliance
fanless mini PC pFsense soft router
Notice:
When you inquiry , you can choose the following Model
PF10406003-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4
threads 2.4GHz Processor
PF10406003-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4
threads 2.5~3.1GHz Processor
PF10406003-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4
threads 2.7~3.5GHz Processor
Intel® 7th gen i3-7100U i5-7200U i7-7500U 6 NIC network security
firewall appliance fanless mini PC soft router support pFsense
Key Features
Integrated Intel® Core 7th generation Kaby Lake-U i3-7100U i5-7200U
i7-7500U dual core processor
Dual channel DDR4 2133Mhz;
2 *DDR4 SODIMM 260 Socket
1* SATAIII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI
4*USB3.0
1*RJ45 COM
6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%
Dimension: 178.3*125.7*55mm
Aluminium chassis
Specifications
| Chassis | Color | Gray |
| Dimension | 178.3*125.7*55mm |
| Material | High-quality pure aluminum mini pc case |
| Platform | Processor | Integrated Intel® Core 7th generation Kaby Lake-U i3-7100U i5-7200U
i7-7500U dual core processor |
| Chipset | Intel® Kaby Lake-U Series SOC |
| Video | Graphics | Intel HD Graphics 620 1*H-D-M-I Maximum resolution support (HDMI1.4) 4096*2304@24HZ
Support 4K display |
| Memory | Technology framework | Dual channel DDR4 2133Mhz; |
| RAM socket | 2 *DDR4 SODIMM 260 Socket |
| Storage | SATA | 1* SATAIII ports,Maximum transmission rate to 6gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum
transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) |
| Network | Ethernet | 6 Intel I211AT or Intel I210 (choose one) |
| WiFi | Support |
| Input/Output Interface | Ports | 6*LAN 1*HDMI 1*DC 4*USB3.0 2*WIFI Antenna interface, 1* switch button 1* Reset button 1* Hard disk indicator, 1* Power Indicator |
| Expansion | Mini PCIe | 1 Mini-PCIe slot for PCIE signal and USB signal devices |
| Cooling | Aluminum alloy heat sink with fan(Support automatic and manual fan
speed adjustment) |
| Power Supply | Power type | Single input DC power,DC12-19V,+/-5% |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% relative humidity, no condensation |
| Storage humidity | 0% ~ 90% relative humidity, no condensation |
| Operate System | | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE,
Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
Advantages
Small size
All Vegashine mini pcs smaller than A4 paper, Most of those small
sized mini pc can be mounted to the backside of monitor, and takes
almost no space of your desk, make your desk more clear and smart.
Durability
All those mini pcs are highly intergrated, runs silent and no need
extra maintenance like normal fat comptuters. And most of them
using aluminium alloy computer case, very durable.
Low power
Using 12V power supply, most of them power consumption from 15W to
30W, compare to 150W traditional pc's consumption, it helps saving
more than 80% energy.
